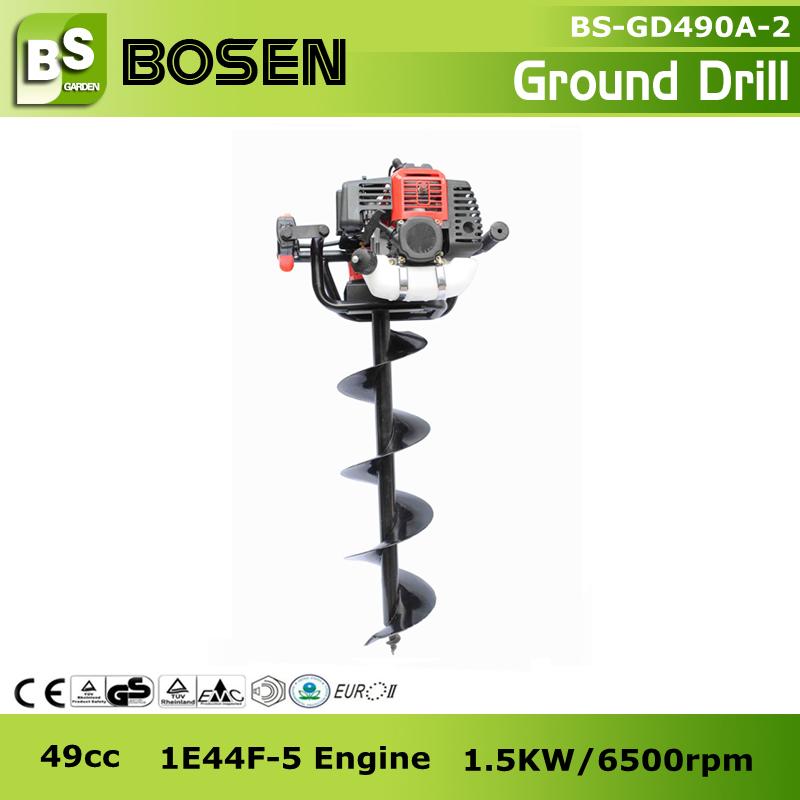

BS-GD490A/710A Ground Drill
1. Displacement: 49cc/71cc
2. 2-Stroke
3. Power: 1.5KW/3.2KW

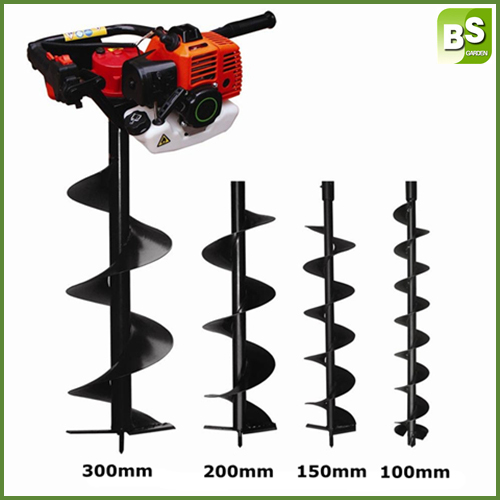

4. Drill diameter: 100/150/200/300mm |
|
Item number |
GD490A |
GD710A |
|
Engine type |
Single Cylinder, 2-Stroke, Air-Cooled |
|
Engine model |
1E44F-5 |
1E50F-1 |
|
Displacement |
49cc |
71cc |
|
Rated output power & Relevant speed |
1.5KW/6500rpm |
3.2KW/6500rpm |
|
Starting system |
Recoil |
|
Carrying type |
Hand hold |
|
Fuel mixture ratio |
Gasoline: Two-cycle Oil (25:1) |
|
Carburetor |
Diaphragm type |
|
Reduction Gear Ratio |
34:1 |
|
Ignition system |
C.D.I |
|
Drill diameter |
100mm/150mm/200mm/300mm |
|
Auger speed |
170-200rpm |
|
N.W./G.W. |
12.7kgs/14.7kgs |
|
Package dimension |
|
|
PCS/CTN |
1PC/2CTN |
|
CTN Size |
Engine carton: 620*410*300mm
Drill carton:
810*110*110mm (100mm)
810*160*160mm (150mm)
810*210*210mm (200mm)
810*310*310mm (300mm) |
|
Loading Qty |
270pcs/20GP, 580pcs/40GP, 680pcs/40HQ |
