Specification

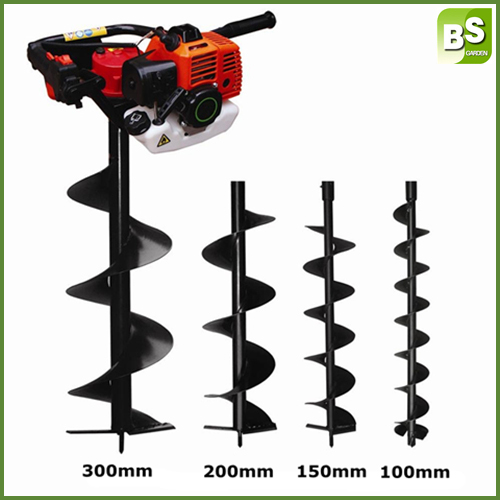

BS-GD490B-1 Ground Drill
1. Displacement: 49cc
2. 2-Stroke
3. Power: 1.5KW
4. Drill diameter: 100/150/200/300mm (Optional)

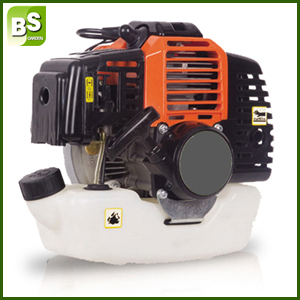

Engine type
Single Cylinder, 2-Stroke, Air-Cooled
Engine model
                1E44F-5
Displacement
  49cc
Output power
  1.5KW
Starting system
Recoil
Carrying type
Hand hold
Fuel mixture ratio
Gasoline: Two-cycle Oil (25:1)
Carburetor
Diaphragm type
Reduction Gear Ratio
34:1
Ignition system
C.D.I
Drill diameter
100mm/150mm/200mm/300mm
Auger speed
170-200rpm
N.W./G.W.
12.7kgs/14.7kgs
Package dimension

PCS/CTN
1PC/2CTN
CTN Size
Engine carton: 620*410*300mm
Drill carton:
810*110*110mm (100mm)
810*160*160mm (150mm)
810*210*210mm (200mm)
810*310*310mm (300mm)
Loading Qty
270pcs/20GP, 580pcs/40GP, 680pcs/40HQ
